CAD drawings of Mesa Boards
07 Jan 2017 11:55 - 09 Jan 2017 12:55 #85396
by bevins
CAD drawings of Mesa Boards was created by bevins
Anyone have cad drawings of the mesa boards? I want to do schematics up in Autocad.
thanks,
/edit I have done some prelim drawings of some Mesa cards. I have attached the cad files and pdf's.
Note: the 7i77 needs some more work. I will do wiring diagrams with the cards also and upload to this thread.
thanks,
/edit I have done some prelim drawings of some Mesa cards. I have attached the cad files and pdf's.
Note: the 7i77 needs some more work. I will do wiring diagrams with the cards also and upload to this thread.
Last edit: 09 Jan 2017 12:55 by bevins.
Please Log in or Create an account to join the conversation.
07 Jan 2017 12:50 #85398
by BigJohnT
Replied by BigJohnT on topic CAD drawings of Mesa Boards
The layout of each board is on the last page of each manual if that is what you mean.
JT
JT
Please Log in or Create an account to join the conversation.
07 Jan 2017 12:54 #85399
by bevins
Replied by bevins on topic CAD drawings of Mesa Boards
Hi John,
No, I am doing schematics showing wire connections. I want an accurate dxf so I can cad out the wiring. I started doing them myself in case nobody has them.
I will post them in my build thread when I finish them.
Thanks,
Bob
No, I am doing schematics showing wire connections. I want an accurate dxf so I can cad out the wiring. I started doing them myself in case nobody has them.
I will post them in my build thread when I finish them.
Thanks,
Bob
Please Log in or Create an account to join the conversation.
07 Jan 2017 13:33 #85405
by bevins
Actually, thats exactly what I need. Print page to pdf, import into cad, cleanup and VOILA....
Thanks John.
Replied by bevins on topic CAD drawings of Mesa Boards
The layout of each board is on the last page of each manual if that is what you mean.
JT
Actually, thats exactly what I need. Print page to pdf, import into cad, cleanup and VOILA....
Thanks John.
Please Log in or Create an account to join the conversation.
07 Jan 2017 15:31 #85411
by bevins
Replied by bevins on topic CAD drawings of Mesa Boards
Uploaded cad files for Mesa cards and my system I am working on in the first post of this thread.
Check the pdf if you see any errors.
I will be working on wiring diagrams with these cards in the upcoming days. This will reflect my system retrofit, but I am releasing cad files so you can use them if you like.
Check the pdf if you see any errors.
I will be working on wiring diagrams with these cards in the upcoming days. This will reflect my system retrofit, but I am releasing cad files so you can use them if you like.
Please Log in or Create an account to join the conversation.
07 Jan 2017 20:02 #85421
by rodw
Bevins, where did you upload them to?
Replied by rodw on topic CAD drawings of Mesa Boards
Uploaded cad files for Mesa cards and my system I am working on in the first post of this thread.
Check the pdf if you see any errors.
I will be working on wiring diagrams with these cards in the upcoming days. This will reflect my system retrofit, but I am releasing cad files so you can use them if you like.
Bevins, where did you upload them to?
Please Log in or Create an account to join the conversation.
07 Jan 2017 20:06 #85422
by rodw
Sorry, found them on your first post above. This one for the 7i76e might help you. Some of the connector names change but much of the board is the same.
forum.linuxcnc.org/27-driver-boards/3191...76e-connection-sheet
Replied by rodw on topic CAD drawings of Mesa Boards
Uploaded cad files for Mesa cards and my system I am working on in the first post of this thread.
Check the pdf if you see any errors.
I will be working on wiring diagrams with these cards in the upcoming days. This will reflect my system retrofit, but I am releasing cad files so you can use them if you like.
Bevins, where did you upload them to?
Sorry, found them on your first post above. This one for the 7i76e might help you. Some of the connector names change but much of the board is the same.
forum.linuxcnc.org/27-driver-boards/3191...76e-connection-sheet
Please Log in or Create an account to join the conversation.
07 Jan 2017 21:30 #85425
by Muzzer
Replied by Muzzer on topic CAD drawings of Mesa Boards

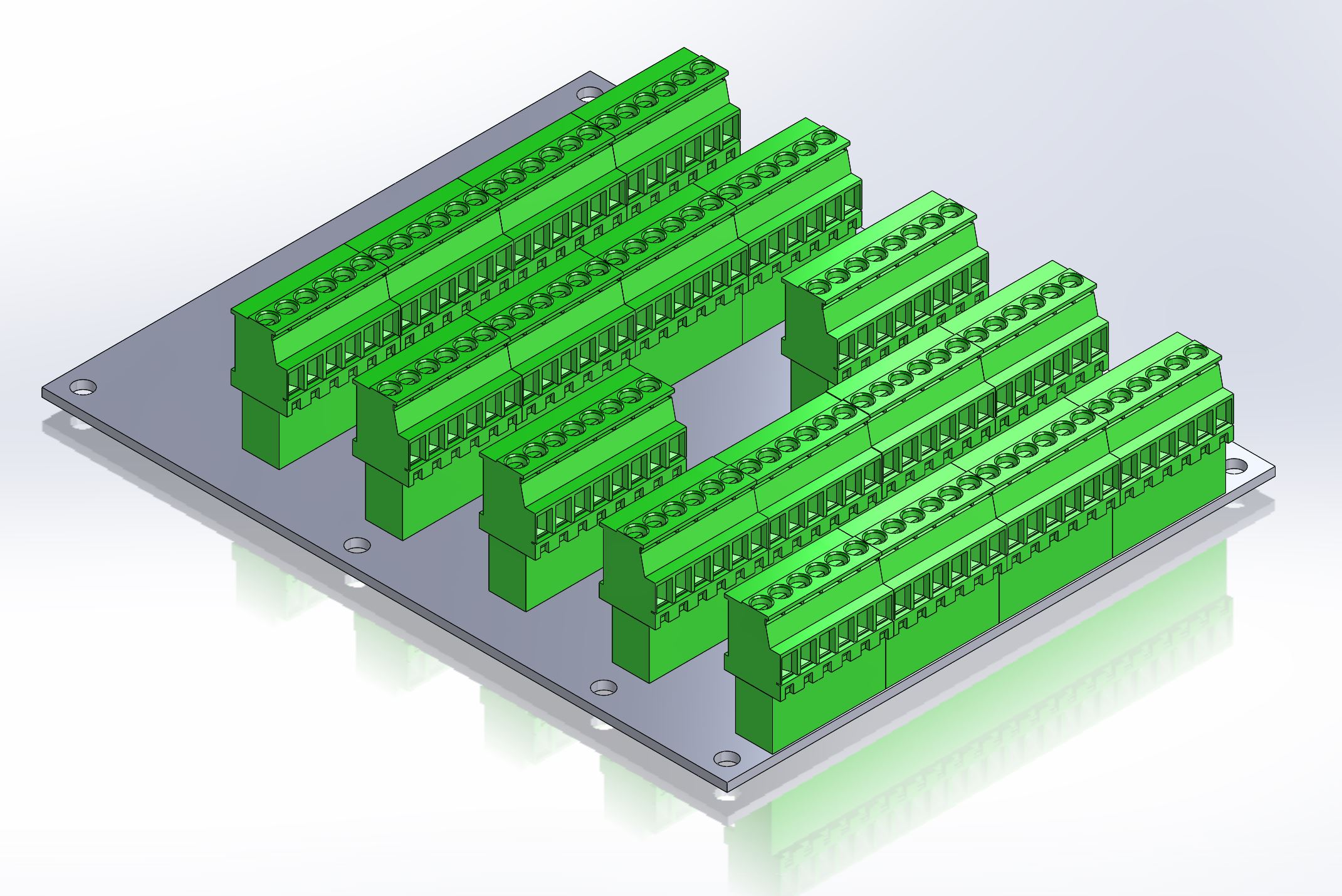

It's not exactly what was asked for but I have a partial 3D model of the 7i76. It has the PCB with connectors and fixings but not the D connector and I didn't bother overlaying the compt ident as it was just for making a cabinet assembly.
Did it in Solidworks but could be exported to other formats if anyone would find it useful, either as it is or to take further. Screenshot attached.
Murray
Did it in Solidworks but could be exported to other formats if anyone would find it useful, either as it is or to take further. Screenshot attached.
Murray
Please Log in or Create an account to join the conversation.
08 Jan 2017 00:49 #85435
by rodw
Replied by rodw on topic CAD drawings of Mesa Boards
Please Log in or Create an account to join the conversation.
08 Jan 2017 00:50 #85436
by bevins
I got all the boards drawn up now,
Thanks...
Bob
Replied by bevins on topic CAD drawings of Mesa Boards
THere are some 7i77 Eagle files and PDF's here
robotech.lt/?p=46
I got all the boards drawn up now,
Thanks...
Bob
