Looking for schematic help

More
04 May 2023 15:12 #270642 by spumco
Replied by spumco on topic Looking for schematic help
Yep, you got the idea just right.

I'd suggest another breaker for the VFD, as well as a main disconnect switch as the first component between the main breaker and incoming line power.

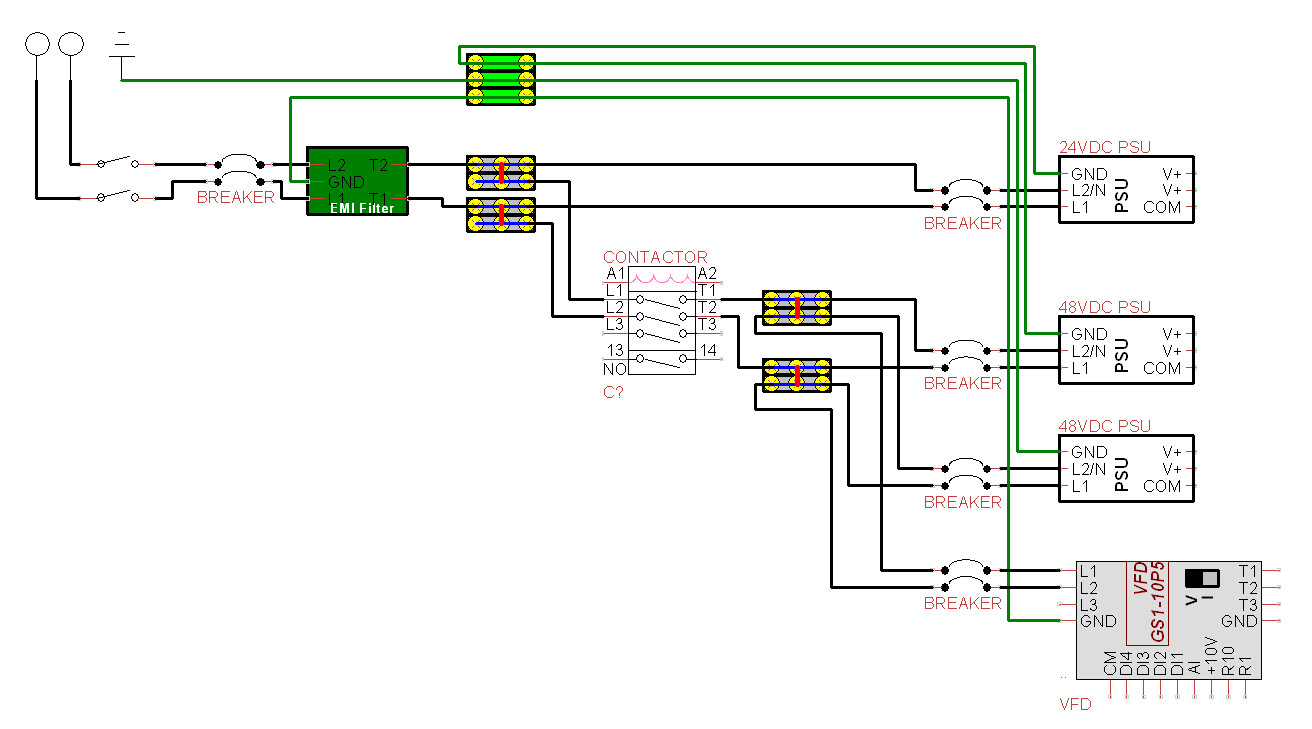

I've not drawn the 24VDC circuits, but the attachment has the basic setup.


Attachments:
The following user(s) said Thank You: gardenweazel

Please Log in or Create an account to join the conversation.

More
04 May 2023 15:15 #270644 by gardenweazel
Thanks for your kindness in drawing this up. I really appreciate it.

Curious, what software did you use to draw this schematic with?

Please Log in or Create an account to join the conversation.

More
04 May 2023 21:12 #270674 by spumco
Replied by spumco on topic Looking for schematic help
TinyCAD.

You can find a few discussions on it here, along with a few other electrical-type software.

I like TinyCAD - I've been using it for years and I've got a decent library of custom components built up.  It's excellent for wiring diagrams, but I think there are probably better software packages available for ladder diagrams and circuit design.  Especially for people who are professionals (or nearly so) or are used to 'pro' schematics.


The following user(s) said Thank You: gardenweazel
