Retrofitting SCM Record 121
19 Jun 2023 19:29 - 19 Jun 2023 19:35 #273869
by gitin
Replied by gitin on topic Retrofitting SCM Record 121
Scheme in zip and pdf format. Unintentional errors are possible.
Attachments:
Last edit: 19 Jun 2023 19:35 by gitin.
The following user(s) said Thank You: Aciera
Please Log in or Create an account to join the conversation.
- MobilierGuibert
- Offline
- New Member
-
Less
More
- Posts: 5
- Thank you received: 0
20 Jun 2023 04:38 #273894
by MobilierGuibert
Replied by MobilierGuibert on topic Retrofitting SCM Record 121
So if I understand my yaskawa servo drives can accept 2 types of signal:
- digital (pulses of 12V) for position control
- analog for speed/torque control (+/-10V) but can be adjusted lower to +/-5V for example.
Am I right?
If we talk about the tool changer, it is driven by a stepper motor stepsyn 103h8221-6241 12-300v.
- digital (pulses of 12V) for position control
- analog for speed/torque control (+/-10V) but can be adjusted lower to +/-5V for example.
Am I right?
If we talk about the tool changer, it is driven by a stepper motor stepsyn 103h8221-6241 12-300v.
Please Log in or Create an account to join the conversation.
20 Jun 2023 07:16 #273905
by Aciera
Replied by Aciera on topic Retrofitting SCM Record 121
You'll want to use the +5V Line driver input option for mesa boards.- digital (pulses of 12V) for position control
Whether it can be adjusted to +/-5V depends on your Yaskawa drive. You'll need to check the Yaskawa manual for confirmation.analog for speed/torque control (+/-10V) but can be adjusted lower to +/-5V for example.
Any information on the stepper motor drive?If we talk about the tool changer, it is driven by a stepper motor stepsyn 103h8221-6241 12-300v.
Please Log in or Create an account to join the conversation.
- MobilierGuibert
- Offline
- New Member
-
Less
More
- Posts: 5
- Thank you received: 0
20 Jun 2023 21:16 #273964
by MobilierGuibert
Replied by MobilierGuibert on topic Retrofitting SCM Record 121
The stepper motor drive is a RTA GAC-03.
For the +/-5V on yaskawa drives I took this information directly from the manual.
For the +/-5V on yaskawa drives I took this information directly from the manual.
Please Log in or Create an account to join the conversation.
21 Jun 2023 05:27 #273980
by Aciera
Replied by Aciera on topic Retrofitting SCM Record 121

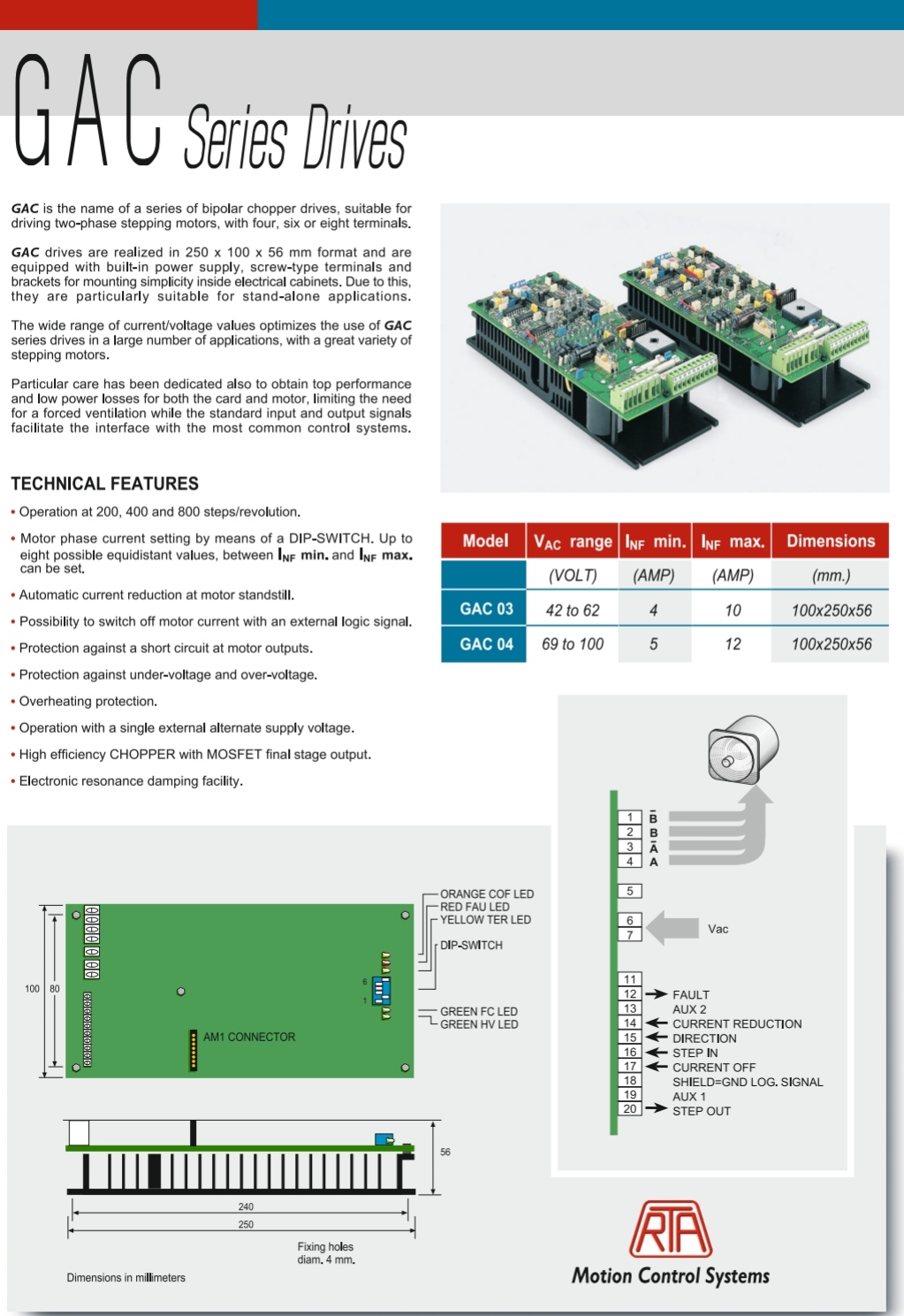

Looks like a regular step/direction stepper motor driver. Datasheet is somewhat sparse so you might have to try out if it takes the regular 5V logic signals.
Please Log in or Create an account to join the conversation.
- HalaszAttila
- Offline
- Premium Member
-
Less
More
- Posts: 142
- Thank you received: 5
22 Aug 2023 20:26 #278734
by HalaszAttila
Replied by HalaszAttila on topic Retrofitting SCM Record 121
Hello,
as i see you have a similar servo drivers, like mine. My servos are: Yaskawa SGDB 15 ADG. It has analog and step/dir command imputs. Can you tell me please, do you can use use (enable it and rotate the motor) without connected operator panel or PC software?
I dont have operator panel on drive, and at first i tried the drive testing with RS232 and PC software. With sotware i can enable and JOG the motor. But just the alone driver, i cant enable by /S-ON signal on 1CN connector. Wiring is ok, the software detects level change on input. And if the software is connected, i can enable by wire. But without software - nothing. Do you have expreience with this situation?
Thanks, Attila.
as i see you have a similar servo drivers, like mine. My servos are: Yaskawa SGDB 15 ADG. It has analog and step/dir command imputs. Can you tell me please, do you can use use (enable it and rotate the motor) without connected operator panel or PC software?
I dont have operator panel on drive, and at first i tried the drive testing with RS232 and PC software. With sotware i can enable and JOG the motor. But just the alone driver, i cant enable by /S-ON signal on 1CN connector. Wiring is ok, the software detects level change on input. And if the software is connected, i can enable by wire. But without software - nothing. Do you have expreience with this situation?
Thanks, Attila.
