New Arduino based USB pendant

More
18 Sep 2023 14:40 #281082 by step4linux
hello everybody,
recently I started to work on an USB pendant for my LCNC/gmoccapy CNC/router. I was tired using the mouse for interactions.
ArcEyes great work was the starting point so I called it ArduinoPendant3 and serialcom3. This is work in progress and just a snap shot. I start to publish it anyway now. Maybe somebody has comments or ideas for improvement.

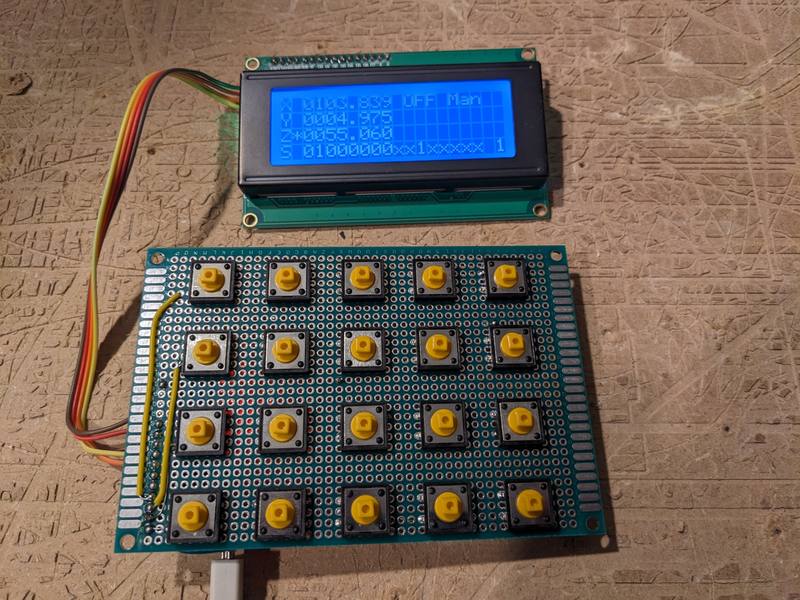

HW is a 4x5 pushbutton matrix on a 120x80 mm breadboard, a 20x4 LCD display and an Arduino nano. I plan to build a 3D-printed enclosure with integrated pads for the pushbuttons.


File Attachment:

File Name: ArduinoPendant3.zip
File Size:4 KB


cheers Gerd
Attachments:
The following user(s) said Thank You: tommylight, Aciera

Please Log in or Create an account to join the conversation.

More
21 Sep 2023 07:33 #281283 by step4linux

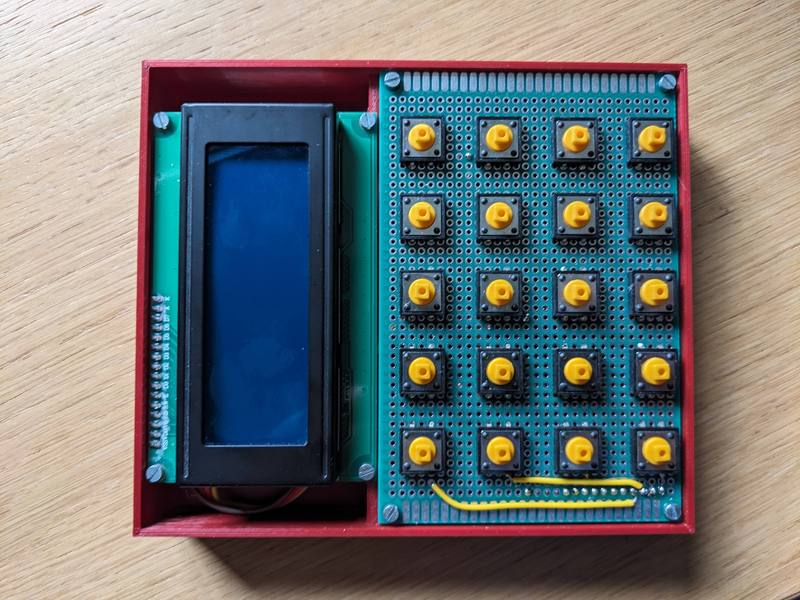

Next step is done:
Lower part of the enclosure

Attachments:
The following user(s) said Thank You: COFHAL

Please Log in or Create an account to join the conversation.

More
01 Oct 2023 15:53 #281991 by step4linux

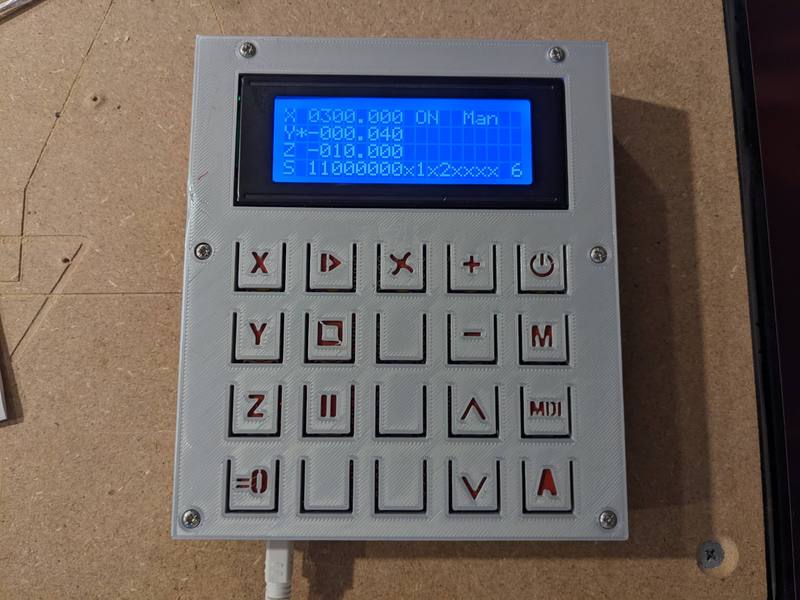

Hardware is complete now.
As you can see, 3D-print is not perfect, but functionally it is ok.
Now software needs completion an optimization.
rgds Gerd

Attachments:
The following user(s) said Thank You: tommylight, COFHAL
