Slant-Pro Lathe Electrical Schematic

  • smgvbest
  • smgvbest's Avatar Topic Author
  • Offline
  • Elite Member
  • Elite Member
More
03 Nov 2021 04:38 #225071 by smgvbest
Slant-Pro Lathe Electrical Schematic was created by smgvbest

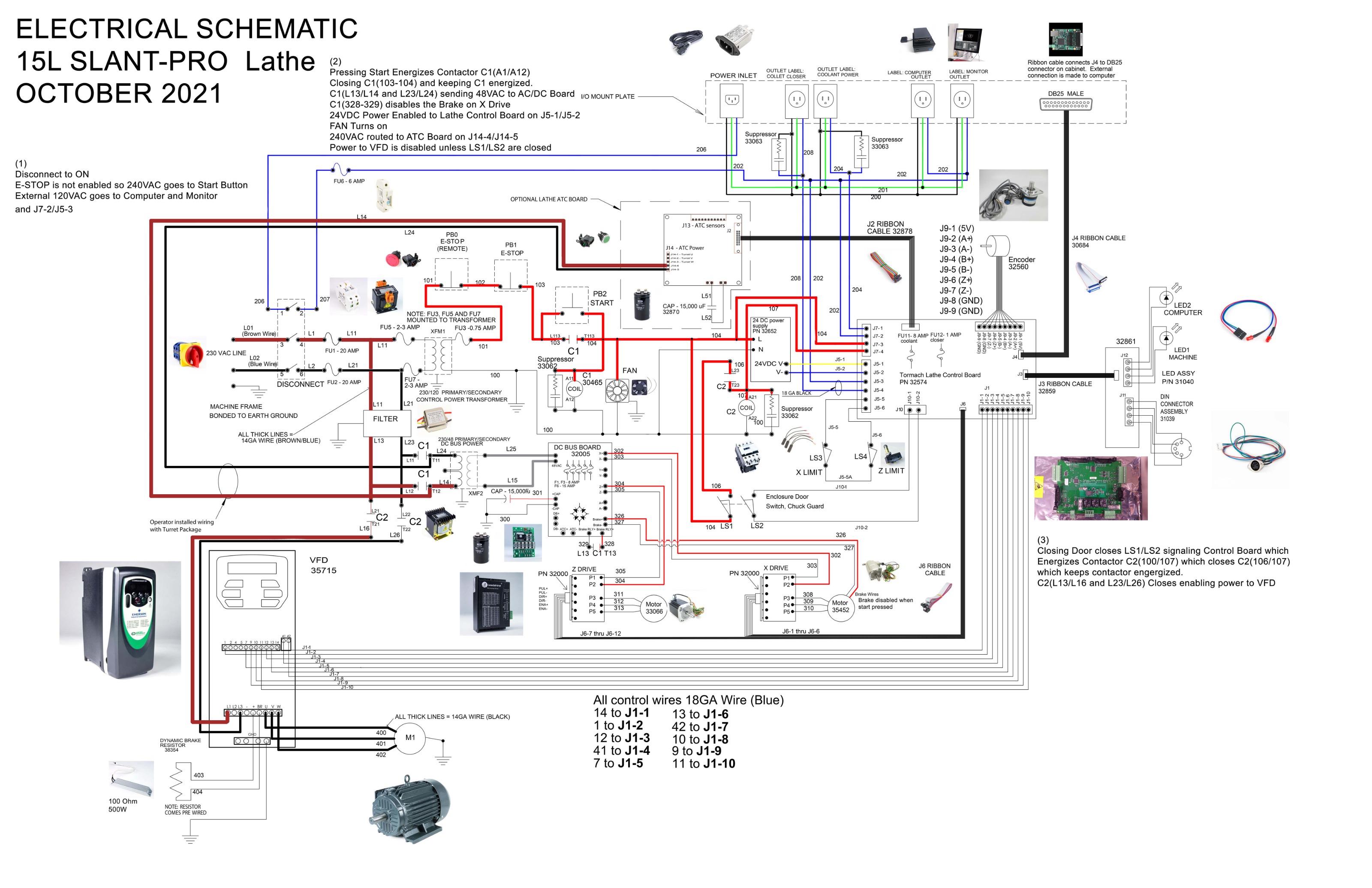

I've been under the weather for some time and for what ever reason I took and color coded the Electrical diagram and cleaned it up a bit plus added notes for the power up process used on the lathe.

Sharing here if anyone is interested.
I thought about adding the control board pin out (estimated) and other helpful items if there is interest

does anyone find this useful?

the full size image is too large to upload here if there's interest in it I can make it available online and can post the link here




Attachments:
The following user(s) said Thank You: tommylight, Clive S, snowgoer540, spumco
