09 Oct 2020 03:36 #185423
by BeagleBrainz
Control cabinet\box rebuild was created by BeagleBrainz
So it's about time to clean up the electricals, mainly due to having to house the electrics for the spindle controller & changing from a Mini ITX Board to the Odroid.

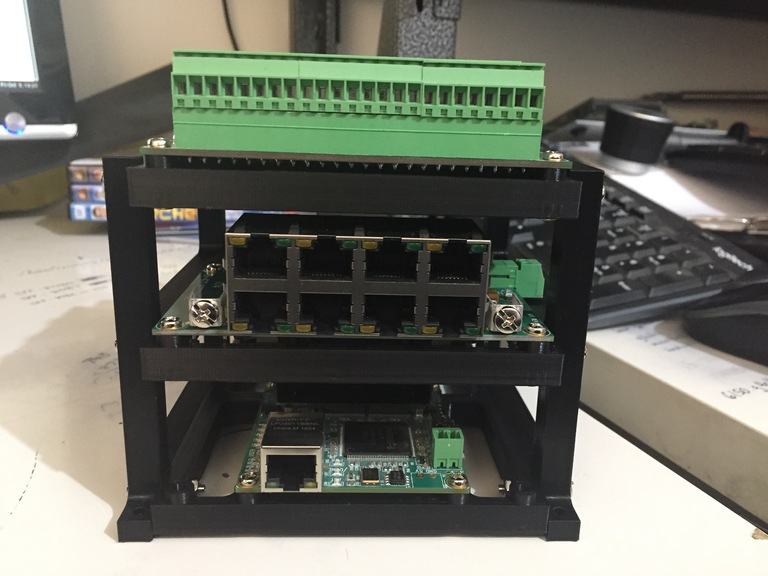

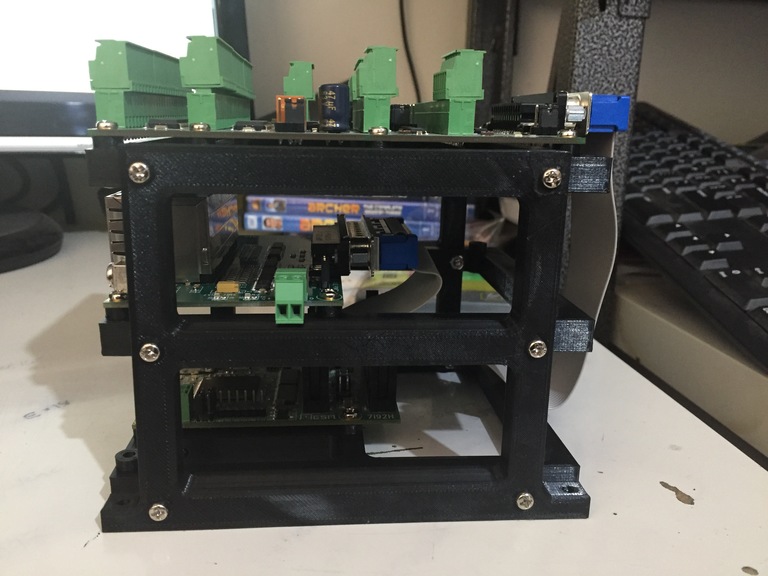

So I thought the best place to start would be with said Odroid and some where to put the Mes 7i92, 7i74 & &776. So this is the first prototype. Odroid still needs a mount for a fan and a holder for the battery. If the mill was going I may have made them out of Aluminium, but for now they are just 3D printed.

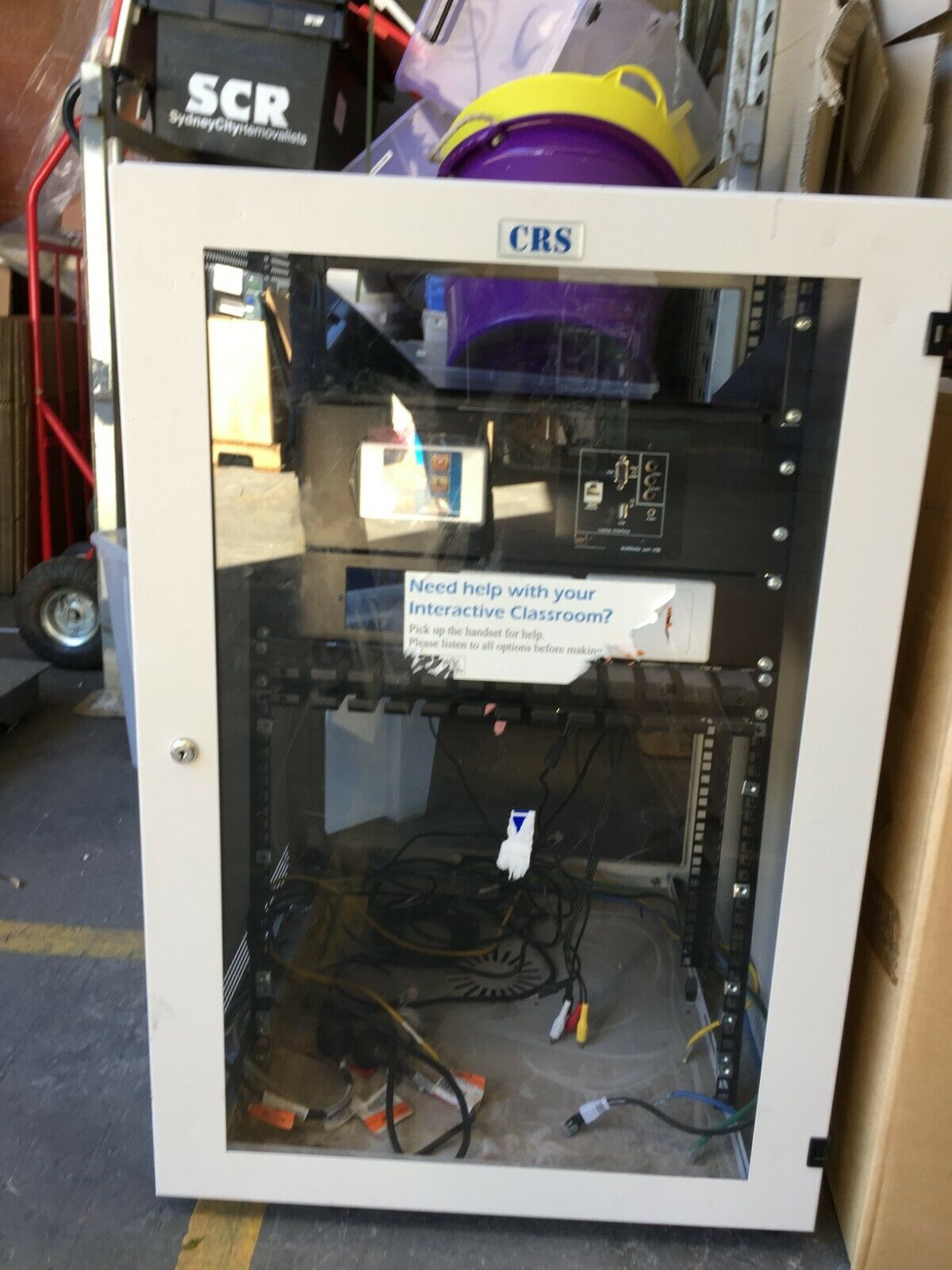

Also picked this up off ebay, size is 600x600x900. Is now on castors has been cleaned out and I need to pick up 2 small pieces of sheet metal to mount things on.
So I thought the best place to start would be with said Odroid and some where to put the Mes 7i92, 7i74 & &776. So this is the first prototype. Odroid still needs a mount for a fan and a holder for the battery. If the mill was going I may have made them out of Aluminium, but for now they are just 3D printed.
Also picked this up off ebay, size is 600x600x900. Is now on castors has been cleaned out and I need to pick up 2 small pieces of sheet metal to mount things on.
The following user(s) said Thank You: tommylight, thefabricator03
Please Log in or Create an account to join the conversation.
10 Oct 2020 06:41 #185559
by rodw
Replied by rodw on topic Control cabinet\box rebuild
Looks good. It would be good to include a pic with a ruler so people get an idea how small your controller frame is!
The following user(s) said Thank You: shortcircuit48
Please Log in or Create an account to join the conversation.
- BeagleBrainz
-
Topic Author
- Offline
- User is blocked
-
Less
More
- Posts: 1437
- Thank you received: 570
10 Oct 2020 08:05 - 10 Oct 2020 08:49 #185564
by BeagleBrainz
Replied by BeagleBrainz on topic Control cabinet\box rebuild

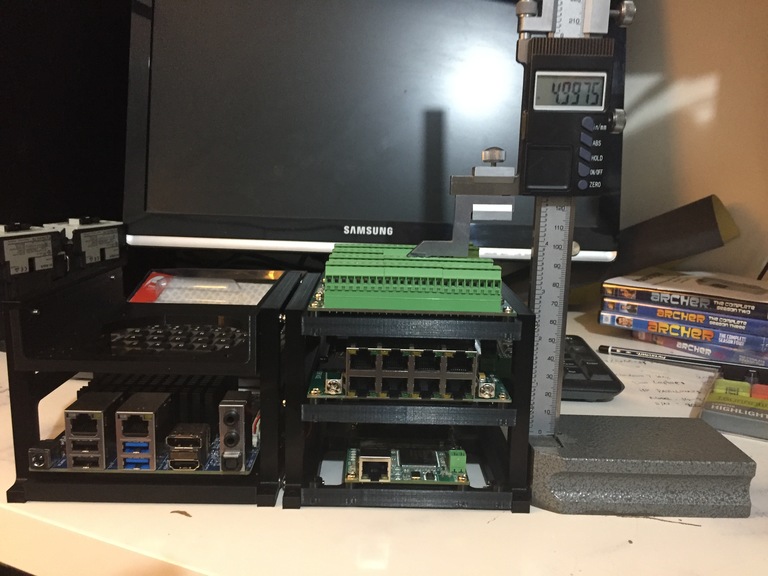

Horizontal sleds mount on 1.75" centres. Overall height just a tad under 5". Would fit in a 4U rack case. Height gauge is resting on top of connectors.

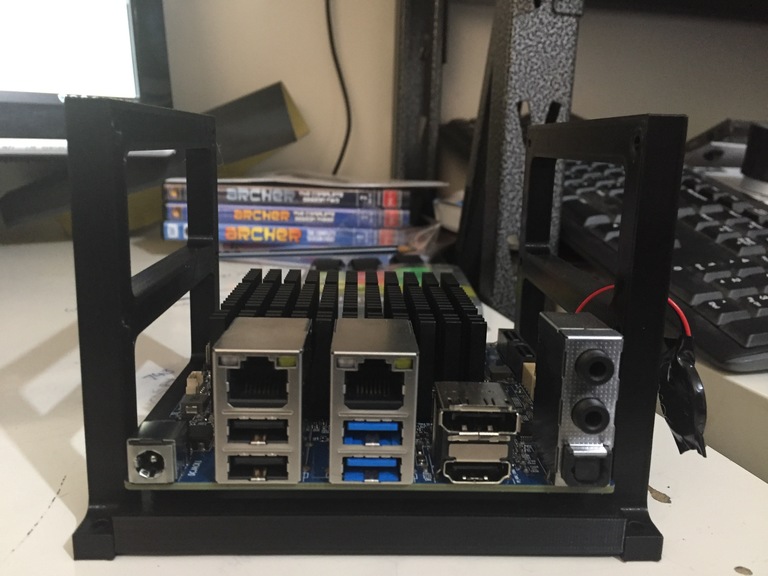

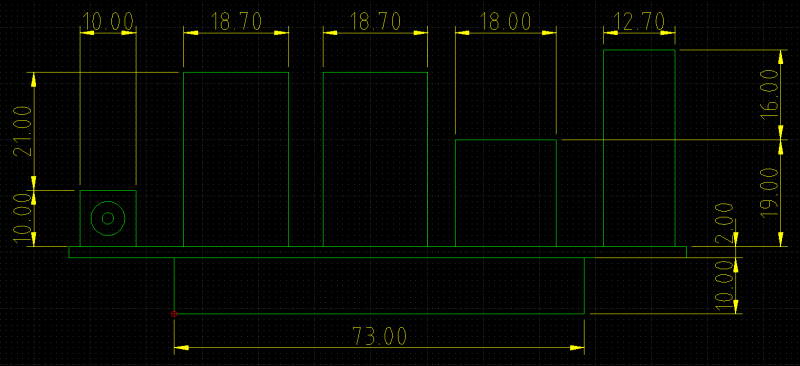

Just for reference the Odroid is on a 110x110mm board, smaller in area than a 120mm pc fan. Overall hieght is 47mm that includes the Ram & NVME drive mounted underneath.
