02 Aug 2020 09:15 #176877 by rodw

Replied by rodw on topic Photos

phillc54 wrote:
Be carefull Clive, if you do cut imperial gcode on a metric machine then you need to set up an imperial material to suit.

I'm sure he'll have to rebuild his machine with an imperial tape measure before he can cut it! ....

The following user(s) said Thank You: dvn4life1972

Please Log in or Create an account to join the conversation.

phillc54
Topic Author
Offline
Platinum Member

02 Aug 2020 09:16 #176879 by phillc54

Replied by phillc54 on topic Photos

rodw wrote:

phillc54 wrote:
Be carefull Clive, if you do cut imperial gcode on a metric machine then you need to set up an imperial material to suit.

I'm sure he'll have to rebuild his machine with an imperial tape measure before he can cut it! ....

I think they are still available in museums. :laugh:

The following user(s) said Thank You: rodw, thefabricator03, dvn4life1972

Please Log in or Create an account to join the conversation.

Clive S
Offline
Platinum Member

02 Aug 2020 12:51 #176887 by Clive S

Replied by Clive S on topic Photos

phillc54 wrote:

rodw wrote:

phillc54 wrote:
Be carefull Clive, if you do cut imperial gcode on a metric machine then you need to set up an imperial material to suit.

I'm sure he'll have to rebuild his machine with an imperial tape measure before he can cut it! ....

I think they are still available in museums.

Yes you were right but I found one lurking in the dust and managed to setup up the machine.

The following user(s) said Thank You: phillc54, dvn4life1972

Please Log in or Create an account to join the conversation.

dvn4life1972
Offline
Platinum Member

02 Aug 2020 15:03 #176894 by dvn4life1972

Replied by dvn4life1972 on topic Photos

Probably would've been easier to convert it with the dxf file instead. I still need to tweak the start points and leadouts a little bit on that cut.

The following user(s) said Thank You: billykid, Clive S

Please Log in or Create an account to join the conversation.

Clive S
Offline
Platinum Member

02 Aug 2020 15:28 #176897 by Clive S

Replied by Clive S on topic Photos

dvn4life1972 wrote:
Probably would've been easier to convert it with the dxf file instead. I still need to tweak the start points and leadouts a little bit on that cut.

Thanks. Would you mind posting dxf file for it and then it can be scaled. I am having trouble with my vintage tape.

Please Log in or Create an account to join the conversation.

dvn4life1972
Offline
Platinum Member

02 Aug 2020 16:33 #176903 by dvn4life1972

Replied by dvn4life1972 on topic Photos

Here you go. Should've known how "challenging" a real system of measurement might be for my esteemed forum friends

The following user(s) said Thank You: phillc54, Clive S

Please Log in or Create an account to join the conversation.

Clive S
Offline
Platinum Member

02 Aug 2020 16:36 #176904 by Clive S

Replied by Clive S on topic Photos

dvn4life1972 wrote:
Here you go. Should've known how "challenging" a real system of measurement might be for my esteemed forum friends [/quote
I agree but I don't have to stand on my head to read it. Thanks

The following user(s) said Thank You: dvn4life1972

Please Log in or Create an account to join the conversation.

dvn4life1972
Offline
Platinum Member

02 Aug 2020 19:01 #176926 by dvn4life1972

Replied by dvn4life1972 on topic Photos

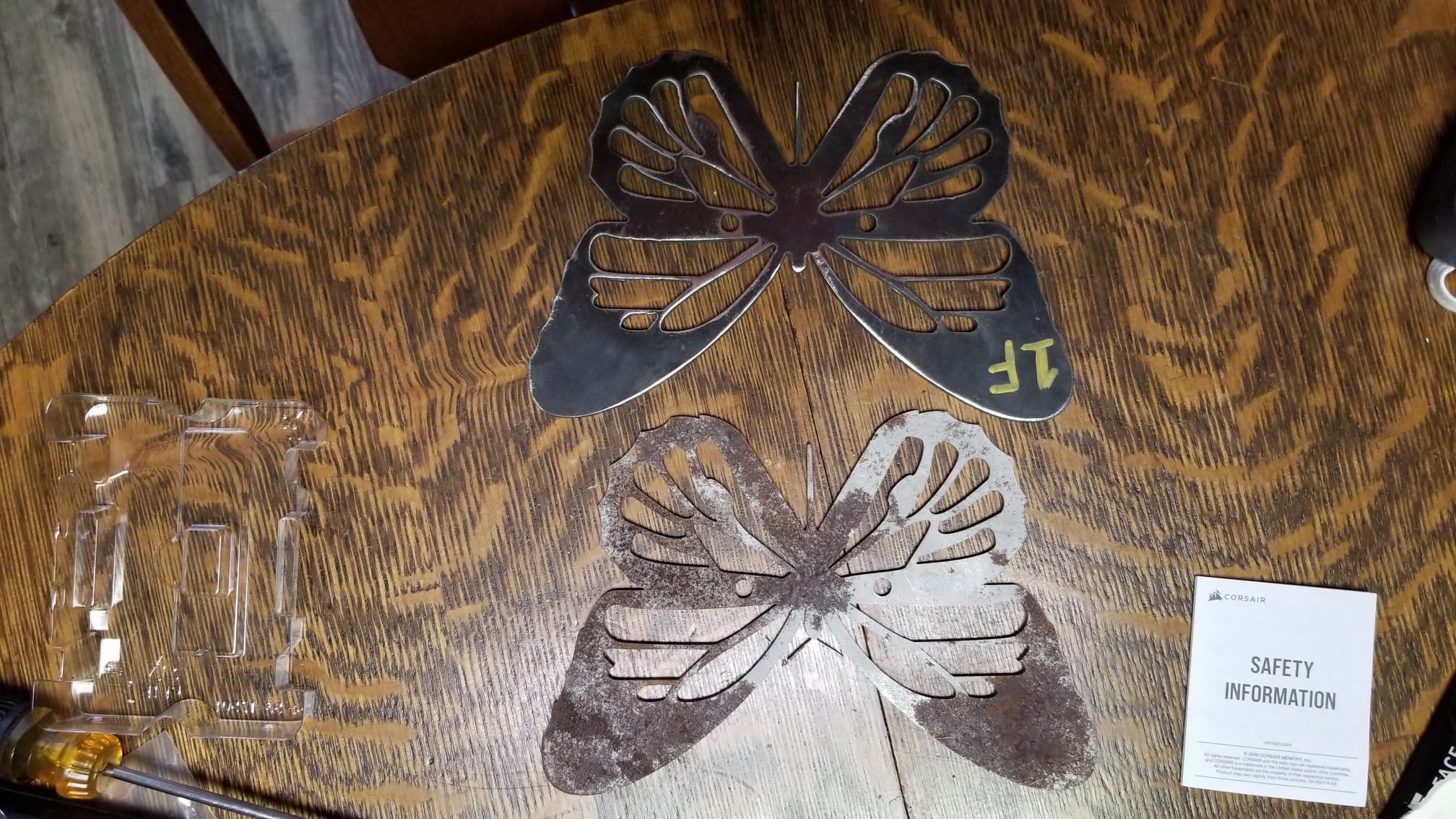

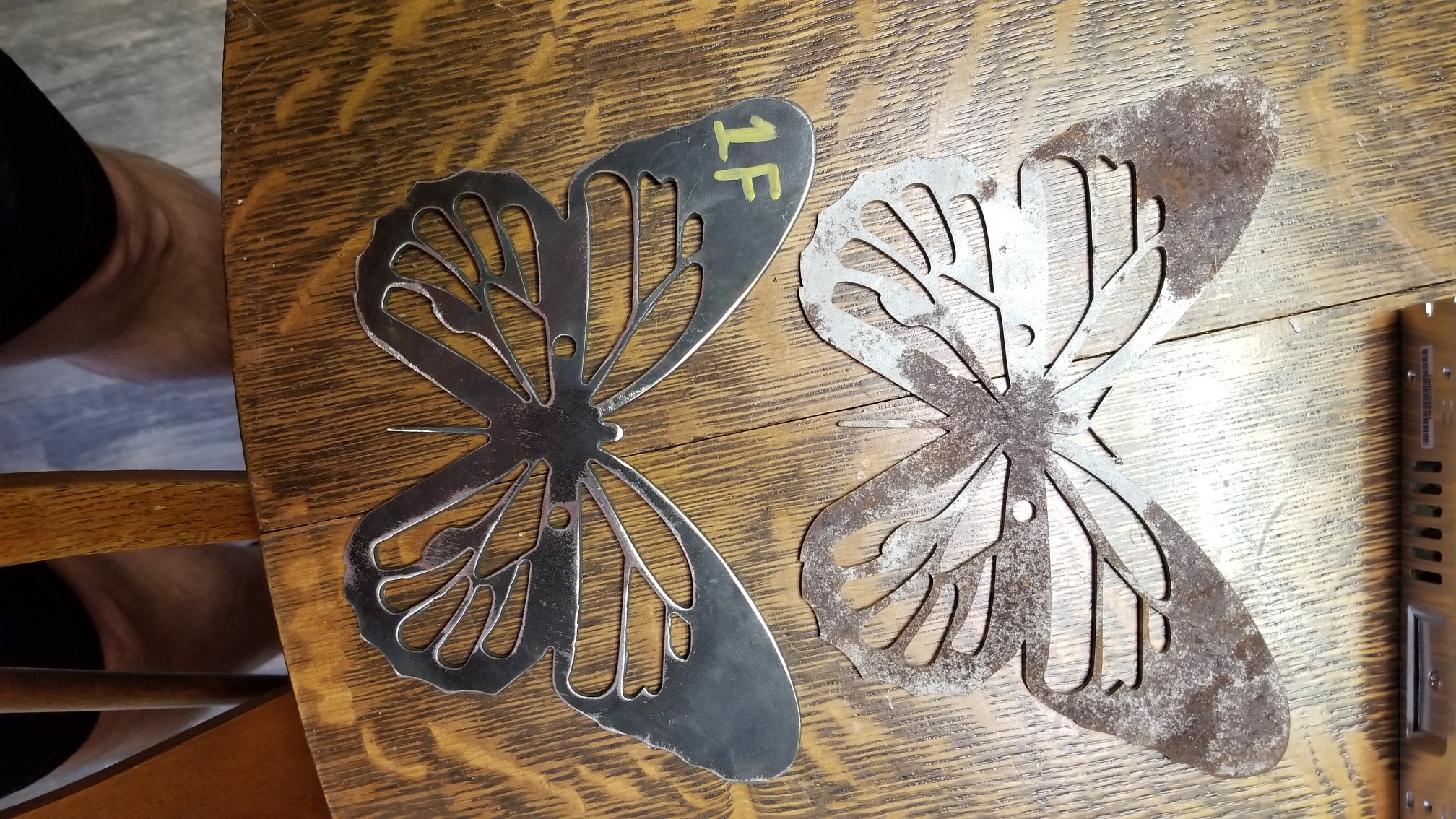

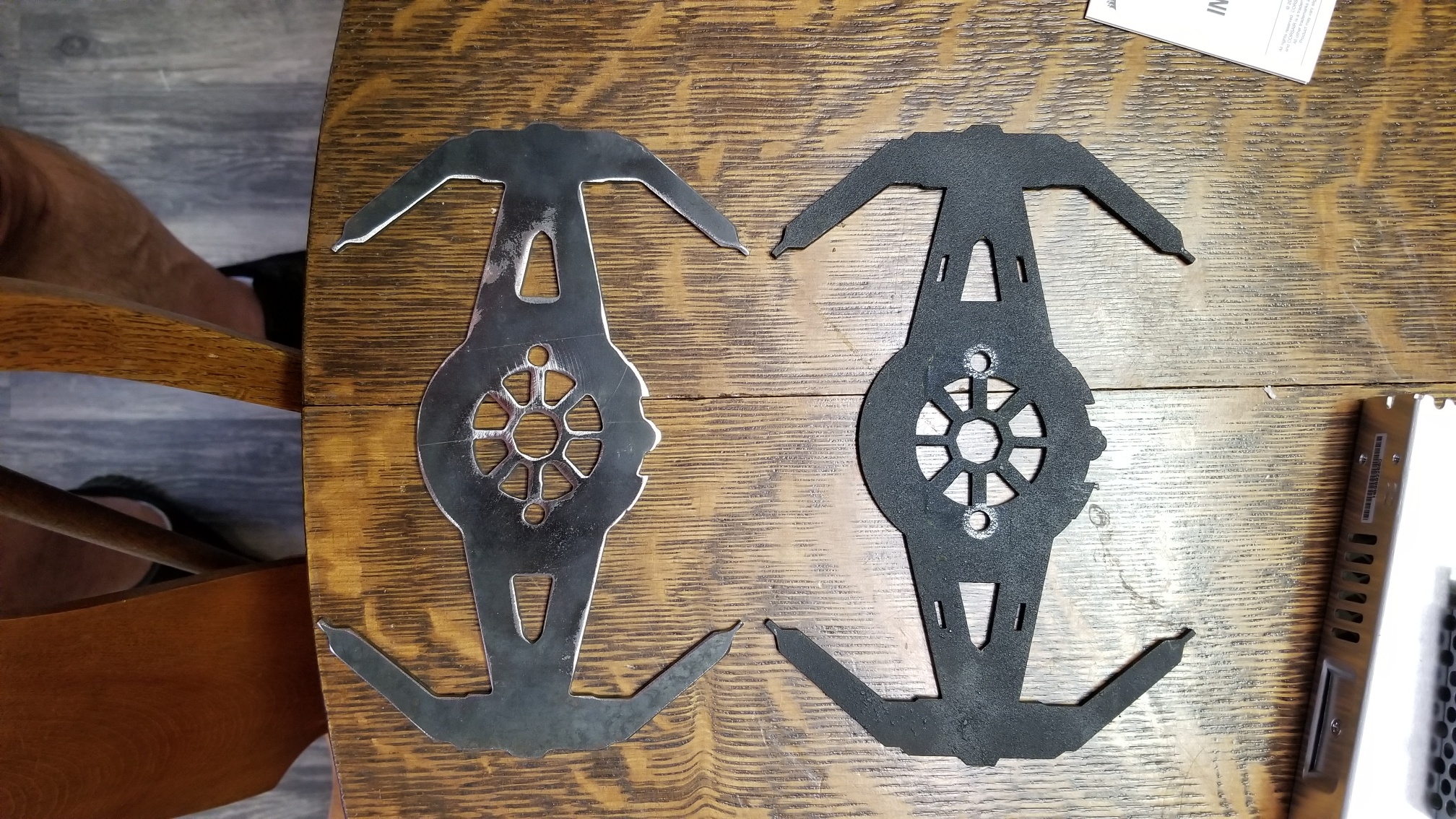

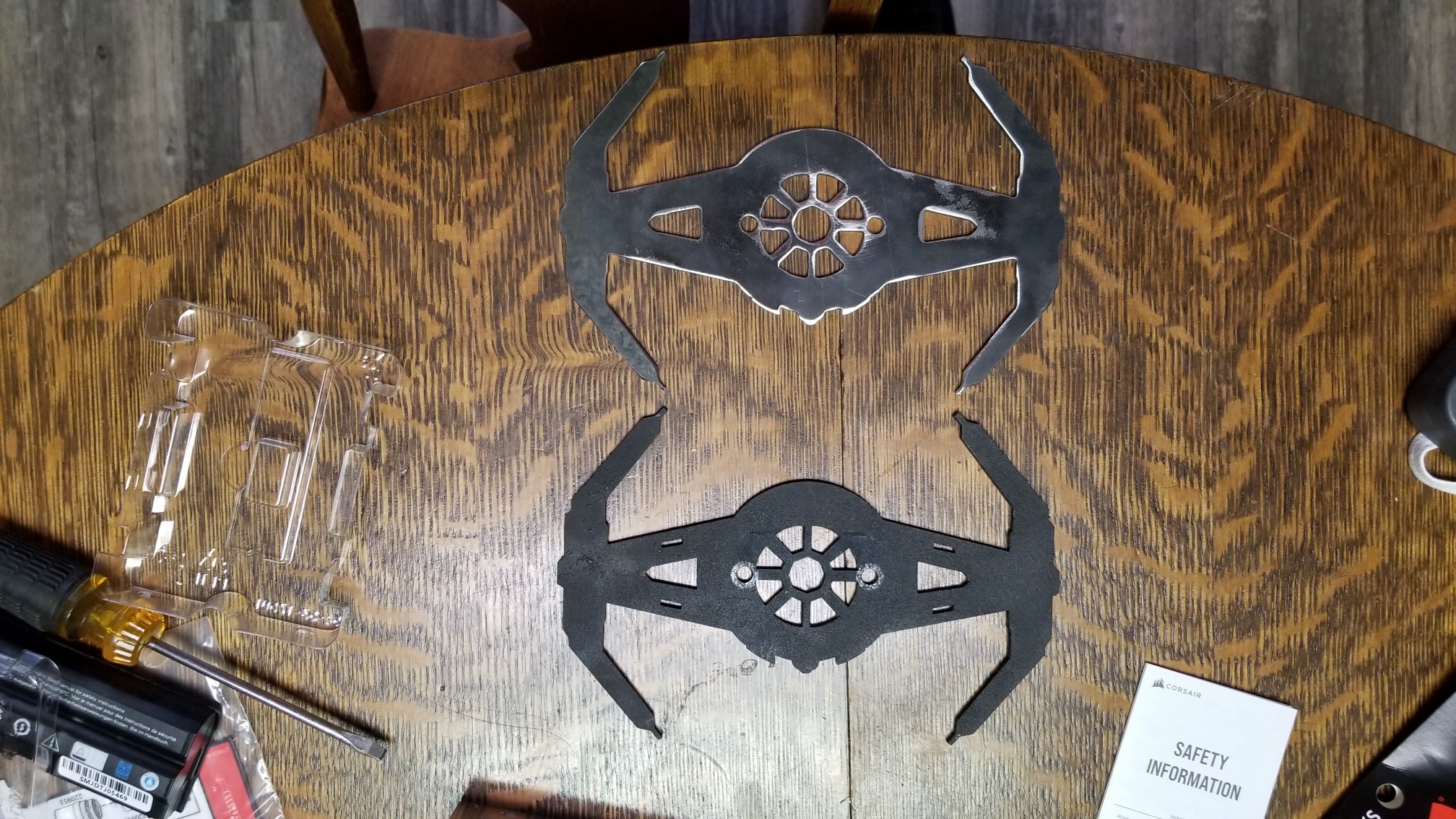

The black powder coated one is laser cut from when I made these years ago. Unfinished HR is today on my table. I think I can still dial it in just a bit better (still have to install my desiccant air dryer and motorguard filter, and I can run it at 30A settings for better definition.
