Ethercat HAL driver
28 Oct 2021 20:04 #224609
by CORBETT
Replied by CORBETT on topic Ethercat HAL driver
I believe lightning hit the power line... as it and the PLC that I bought were both no good....
I have plenty of other setups using EL4132's, but wanted to use the EM7004 for one of our 4 axis mills for a nice compact setup. Yeah I have always wanted one and too bad the very one that I bought was non-functioning.... Plus the loss of money on non-working unit.
I have plenty of other setups using EL4132's, but wanted to use the EM7004 for one of our 4 axis mills for a nice compact setup. Yeah I have always wanted one and too bad the very one that I bought was non-functioning.... Plus the loss of money on non-working unit.
Please Log in or Create an account to join the conversation.
06 Nov 2021 04:54 - 06 Nov 2021 05:08 #225468
by ASKoskov
Replied by ASKoskov on topic Ethercat HAL driver

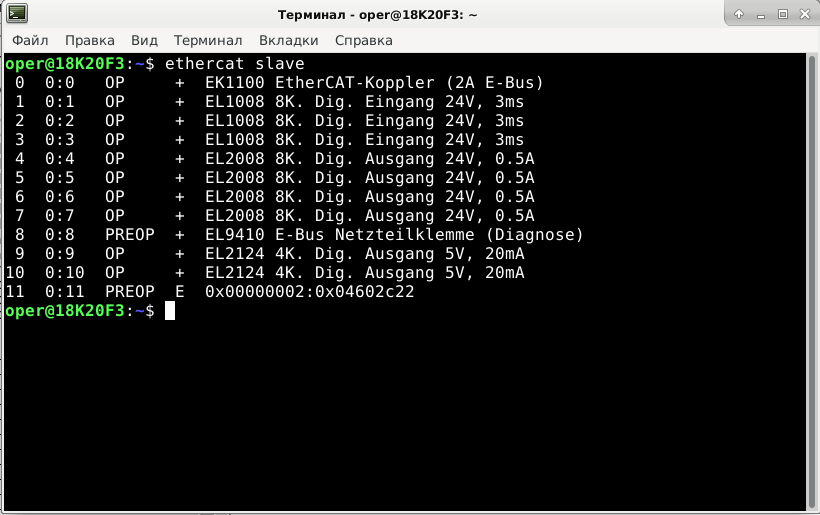

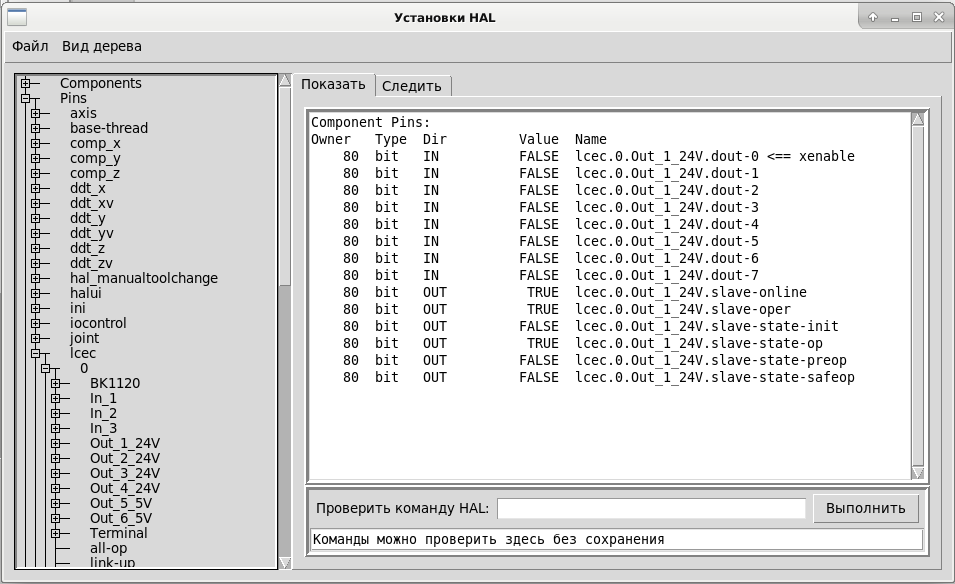

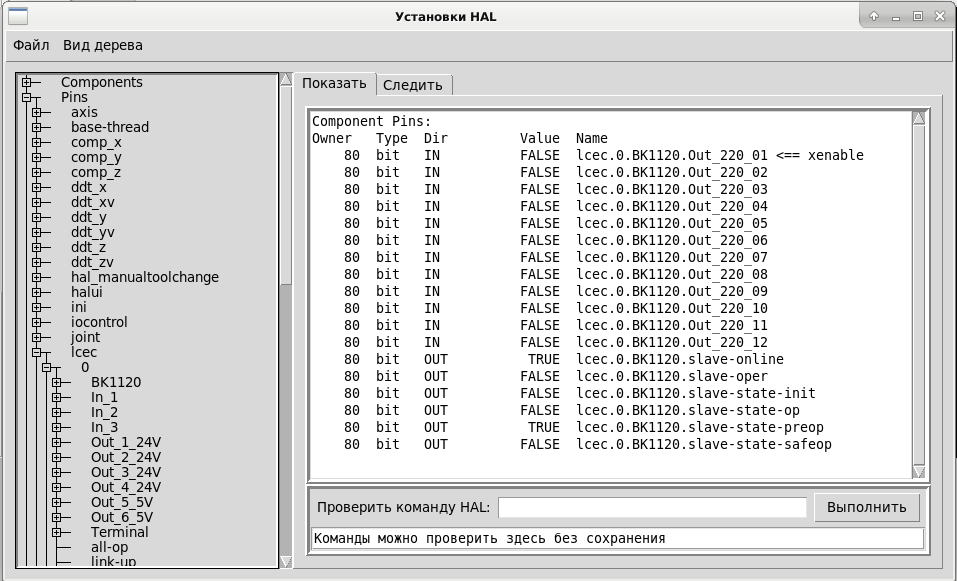

I think it doesn't reach the op state.
Last edit: 06 Nov 2021 05:08 by ASKoskov.
The following user(s) said Thank You: GuiHue
Please Log in or Create an account to join the conversation.
- Schaumstofffräsnewbie
- Offline
- Senior Member
Less
More
- Posts: 46
- Thank you received: 1
09 Nov 2021 09:15 #225793
by Schaumstofffräsnewbie
Replied by Schaumstofffräsnewbie on topic Ethercat HAL driver
When I try to start Linuxcnc with my configuration, I get the following error messages:
lcec_conf: ERROR: unexpected node syncmanager found
lcec_conf: ERROR: Parse error at line 4: parsing aborted
/usr/share/linuxcnc/hallib/ethercat.hal:1: waitpid failed lcec_conf lcec_conf
/usr/share/linuxcnc/hallib/ethercat.hal:1: lcec_conf exited without becoming ready
After that lcnc is shutting down.
I attached my .ini, my ethercat.hal and my ethercat-config.xml
I hope you can find what I am missing here (I am new to linux, linuxcnc and HAL)
best regards
Antonio
lcec_conf: ERROR: unexpected node syncmanager found
lcec_conf: ERROR: Parse error at line 4: parsing aborted
/usr/share/linuxcnc/hallib/ethercat.hal:1: waitpid failed lcec_conf lcec_conf
/usr/share/linuxcnc/hallib/ethercat.hal:1: lcec_conf exited without becoming ready
After that lcnc is shutting down.
I attached my .ini, my ethercat.hal and my ethercat-config.xml
I hope you can find what I am missing here (I am new to linux, linuxcnc and HAL)
best regards
Antonio
Please Log in or Create an account to join the conversation.
09 Nov 2021 11:49 #225807
by db1981
Replied by db1981 on topic Ethercat HAL driver
Hello,
-"syncmanager" hast to be "syncManager" ( M)
-as haltypes only exists (float, bit, u32, s32) you have to change this
uint = u32, int = s32
-at this stage for getting ethercat communication to work, your hal file works.
but for motion etc. it will not. search in this thread for "execution order" i have explained this a few times...
-"syncmanager" hast to be "syncManager" ( M)
-as haltypes only exists (float, bit, u32, s32) you have to change this
uint = u32, int = s32
-at this stage for getting ethercat communication to work, your hal file works.
but for motion etc. it will not. search in this thread for "execution order" i have explained this a few times...
The following user(s) said Thank You: tommylight, jc2ktr
Please Log in or Create an account to join the conversation.
- Schaumstofffräsnewbie
- Offline
- Senior Member
Less
More
- Posts: 46
- Thank you received: 1
09 Nov 2021 12:58 #225814
by Schaumstofffräsnewbie
Replied by Schaumstofffräsnewbie on topic Ethercat HAL driver
Okay, so if I got u right, I need to do your suggested changes in my ethercat-conf.xml.
But if UINT=u32 int=s32, what about DINT and SINT?
I guess that they are not float, but are they bit?
But if UINT=u32 int=s32, what about DINT and SINT?
I guess that they are not float, but are they bit?
Please Log in or Create an account to join the conversation.
09 Nov 2021 13:11 #225817
by db1981
Replied by db1981 on topic Ethercat HAL driver
Dint and Sint , are s32 too. IN hal they are all 4 Byte, casting is done by the value of bitlen .
The following user(s) said Thank You: Schaumstofffräsnewbie
Please Log in or Create an account to join the conversation.
- Schaumstofffräsnewbie
- Offline
- Senior Member
Less
More
- Posts: 46
- Thank you received: 1
11 Nov 2021 06:52 #226069
by Schaumstofffräsnewbie
Replied by Schaumstofffräsnewbie on topic Ethercat HAL driver
Changed the syncmanager Entrys to syncManager, and changed the data types like you described it. Now I got the following errors:
I see that got no permission to enter the ethercat-conf file but I did not find the option where i can change the entry permissions yet..
I see that got no permission to enter the ethercat-conf file but I did not find the option where i can change the entry permissions yet..
Please Log in or Create an account to join the conversation.
11 Nov 2021 08:54 #226081
by db1981
Replied by db1981 on topic Ethercat HAL driver
is the hal file still the same as above?
seems like a typo, because at one of your last posts, lcec_conf has worked...
seems like a typo, because at one of your last posts, lcec_conf has worked...
Please Log in or Create an account to join the conversation.
- Schaumstofffräsnewbie
- Offline
- Senior Member
Less
More
- Posts: 46
- Thank you received: 1
11 Nov 2021 09:00 #226082
by Schaumstofffräsnewbie
Replied by Schaumstofffräsnewbie on topic Ethercat HAL driver
No I changed it a little bit, because of the execution order stuff you mentioned.
This is it now:
This is it now:
Please Log in or Create an account to join the conversation.
11 Nov 2021 11:09 - 11 Nov 2021 11:11 #226093
by db1981
Replied by db1981 on topic Ethercat HAL driver
in line 2 the component is missing.
change:
loadusr -W /home/sfm100/linuxcnc/configs/SFM100/ethercat-conf.xml
to:
loadusr -W lcec_conf /home/sfm100/linuxcnc/configs/SFM100/ethercat-conf.xml
change:
loadusr -W /home/sfm100/linuxcnc/configs/SFM100/ethercat-conf.xml
to:
loadusr -W lcec_conf /home/sfm100/linuxcnc/configs/SFM100/ethercat-conf.xml
Last edit: 11 Nov 2021 11:11 by db1981.
