30 Apr 2023 20:00 #270332 by Joco

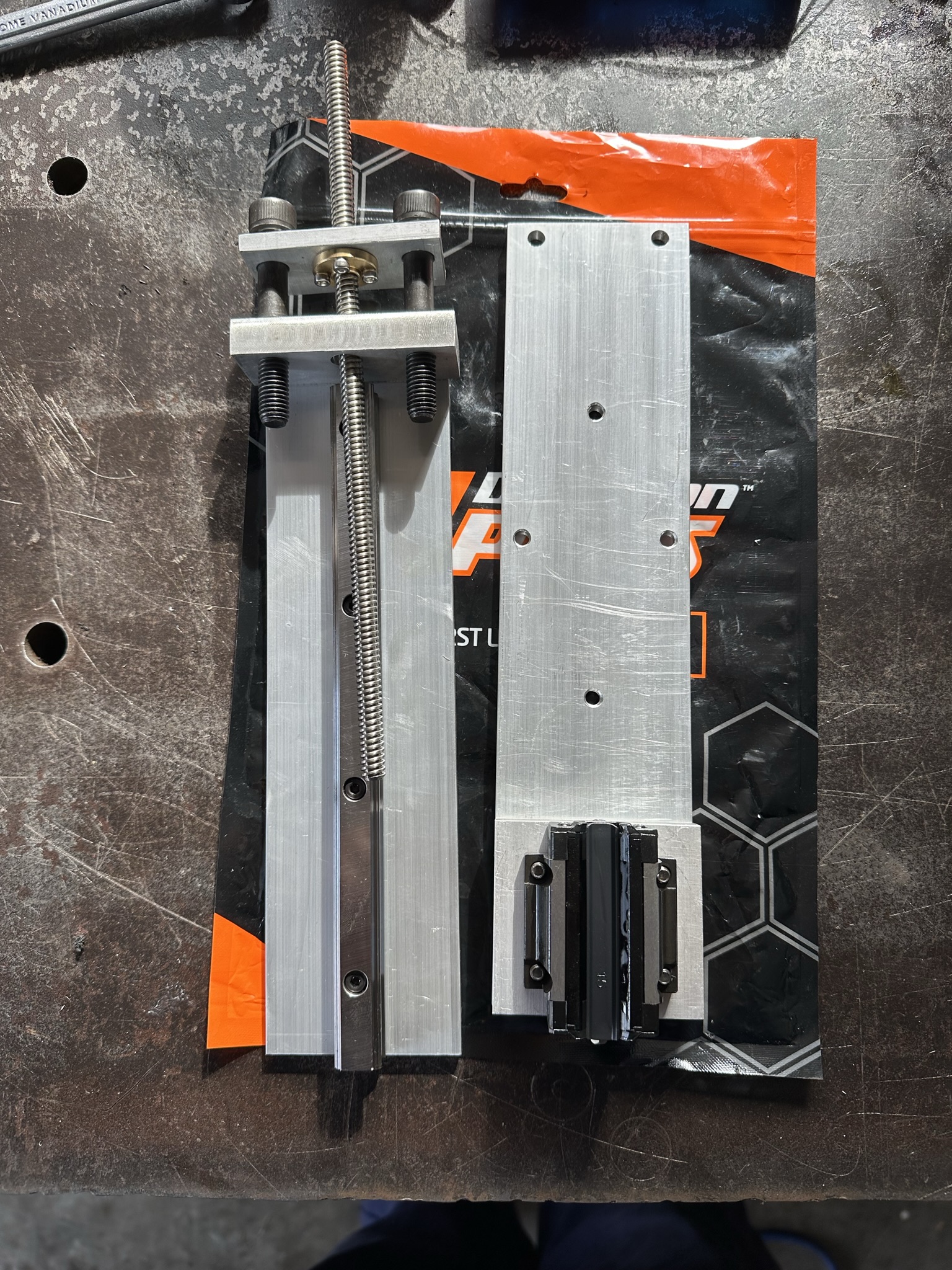

Some progress on z axis this weekend.  Things stalled when I realised i had forgotten to buy the thrust bearing to take the weight through the leadscrew.


Attachments:
The following user(s) said Thank You: tommylight, rodw

Please Log in or Create an account to join the conversation.

  • tommylight
  • tommylight's Avatar
  • Away
  • Moderator
  • Moderator
More
30 Apr 2023 22:23 #270343 by tommylight
Looks yummy ! :)

Please Log in or Create an account to join the conversation.

  • Joco
  • Joco's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
06 May 2023 05:48 #270768 by Joco
We now have motion on Z Axis.   Sensors is next.

youtube.com/shorts/dBUejg5pPyg?feature=share


The following user(s) said Thank You: tommylight, rodw

Please Log in or Create an account to join the conversation.

  • Joco
  • Joco's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
12 May 2023 02:45 #271198 by Joco

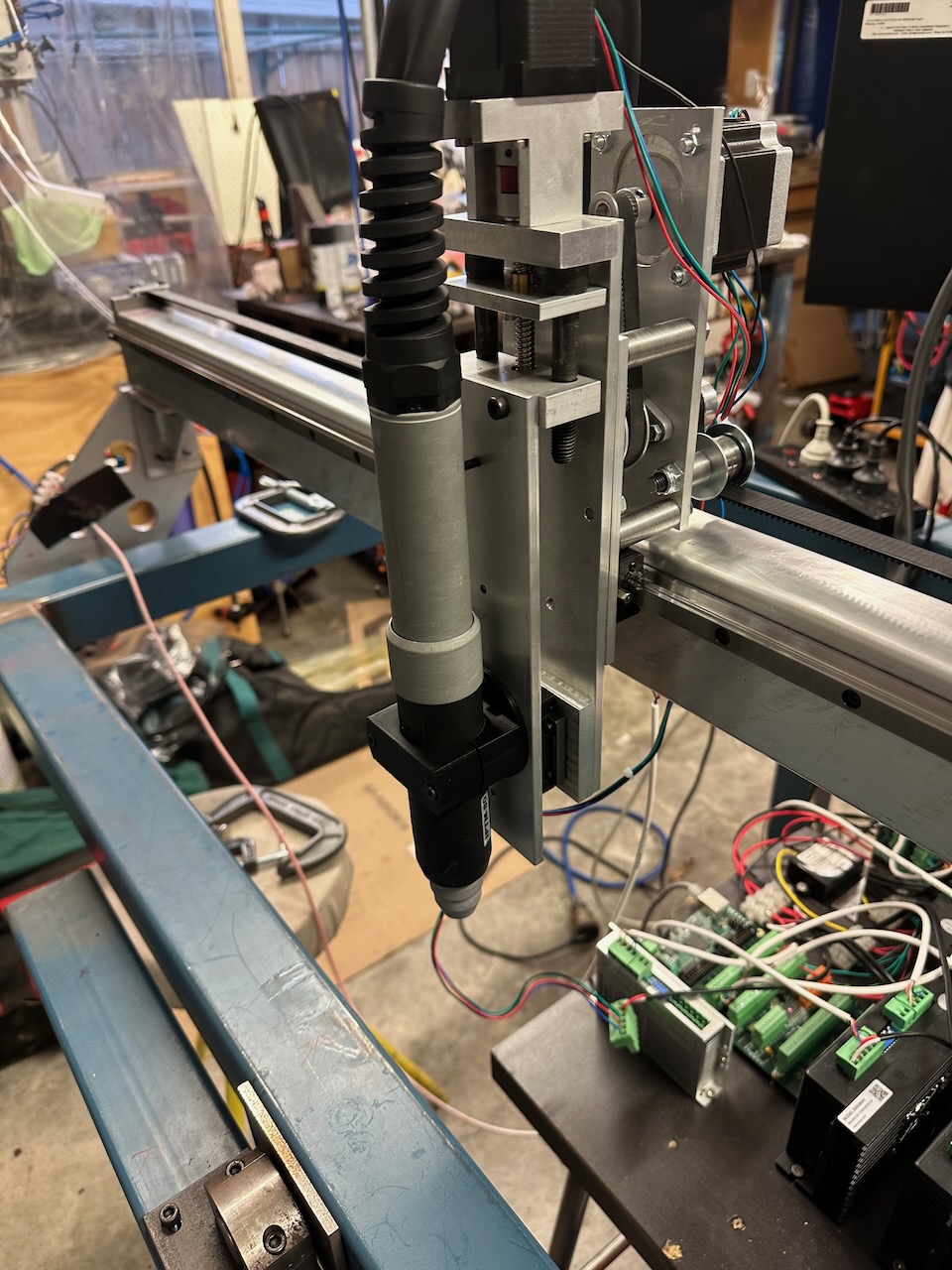

Just adding a pic of the torch in place.


Attachments:
The following user(s) said Thank You: tommylight

Please Log in or Create an account to join the conversation.

  • tommylight
  • tommylight's Avatar
  • Away
  • Moderator
  • Moderator
More
19 May 2023 12:21 #271668 by tommylight
Henry Mateo
His account has been compromised and is posting spam from India.
Temporary banned till he changes the password.

Please Log in or Create an account to join the conversation.

  • Joco
  • Joco's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
06 Jun 2023 00:01 - 06 Jun 2023 00:07 #272986 by Joco

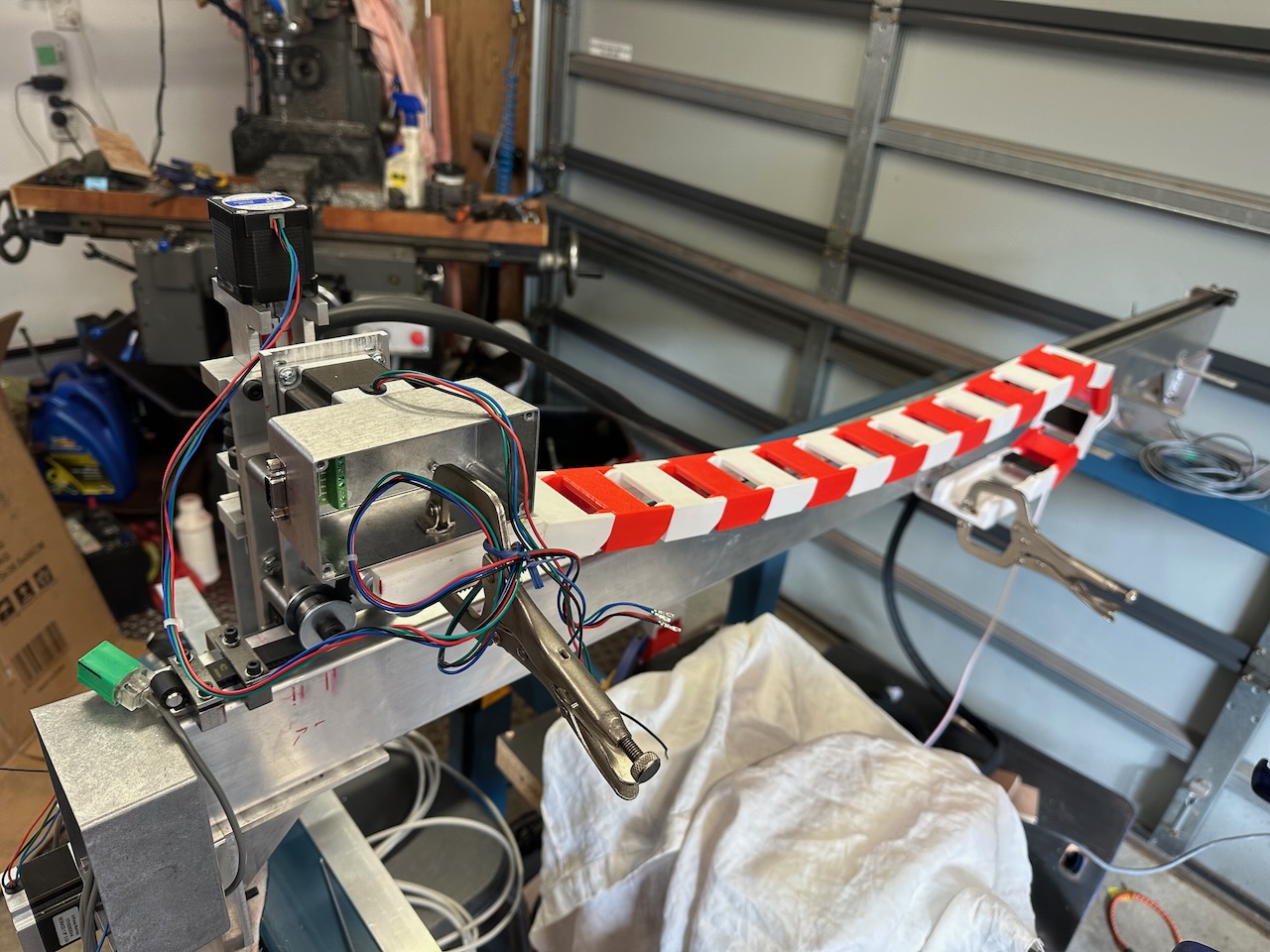

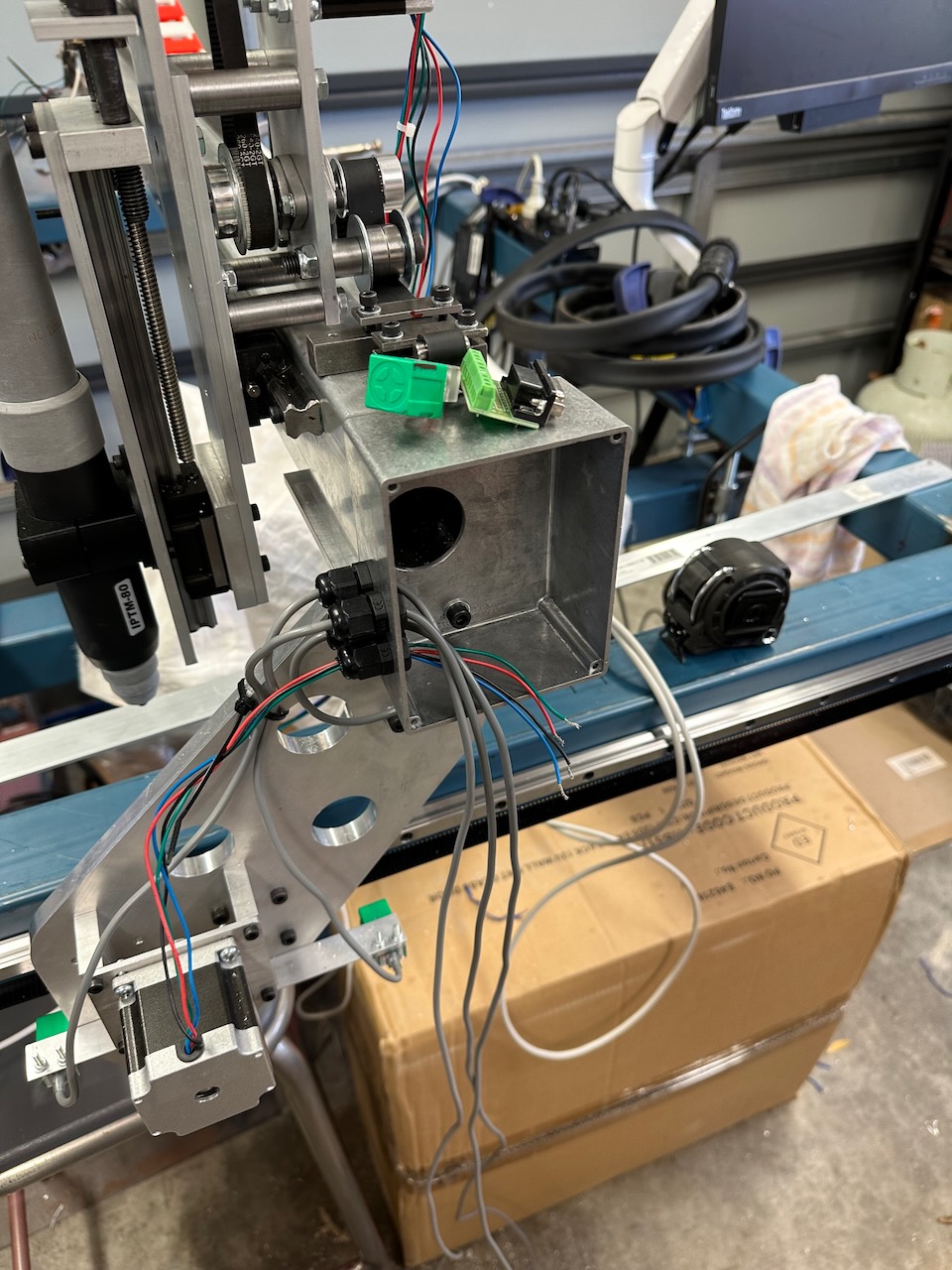

Getting into controlling the wiring so a couple of pics of the junction boxes to be used on Y and X axis along with the trial positinoing of the X axis cable chain.  Printed thanks to the design link supplied by tommylight.

Cheers - J.







Attachments:
Last edit: 06 Jun 2023 00:07 by Joco.
The following user(s) said Thank You: tommylight, rodw

Please Log in or Create an account to join the conversation.

  • tommylight
  • tommylight's Avatar
  • Away
  • Moderator
  • Moderator
More
06 Jun 2023 00:20 #272987 by tommylight
Looking niceeeee ! :)
The following user(s) said Thank You: Joco

Please Log in or Create an account to join the conversation.

  • Joco
  • Joco's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
27 Sep 2023 06:02 - 27 Sep 2023 19:58 #281696 by Joco
Well some news ...




And then a close up of what was cut and how it came out:

Last edit: 27 Sep 2023 19:58 by Joco.
The following user(s) said Thank You: tommylight, rodw

Please Log in or Create an account to join the conversation.

  • tommylight
  • tommylight's Avatar
  • Away
  • Moderator
  • Moderator
More
28 Sep 2023 01:29 #281756 by tommylight
-Nozzle to high
-air pressure low
-speed to high
-current to low
From your video, the last two, it seems, or the first.
Clean machine! :)
Enjoy it, it will be dirty very soon.

Please Log in or Create an account to join the conversation.

  • Joco
  • Joco's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
28 Sep 2023 03:29 #281764 by Joco
Thanks tommylight. I have upped the air pressure. Higher speed seems to improve dross. 40Amp on 2mm should be ok? Think that was running at 2300mm/min. Slower does not improve dross levels that I can see. ~2640mm/min seems better.

I'm doing some test at that speed dialing in the kerf size. Also need to get more ridgid torch holding. But still stocked its actually starting to cut.

Now need to start thinking about water table, THC and no doubt some other refinements that will come up.

Cheers - J.
The following user(s) said Thank You: tommylight, rodw
